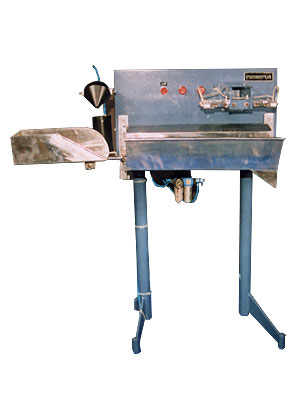

Sealing & Coding machine (SPW)

Applications

To have THERMO-WELD joint on heat sealable pouches.

ADVANTAGES

• Makes THERMO-WELD joint by instantaneously cooling the sealed joint.
• Maximum sealing length can be upto 2 mtr. on demand.
• Machine can be designed as per requirement to accept pouch vertically or horizontally.
• An impulse sealer, with separate sealing and cooling controls.
• Devices to control sealing and cooling as per requirement.

Assembly

The machine is made of high quality MS material and pneumatic parts are made of Nucon or Festo make.

Operations

• Switch on the air, water and electric supply to the machine.
• Place the pouch in such a manner that is between the jaws holding heating elements.
• Manually operate the button on foot-switch fitted on the right side button of the machine.
• The sequence of the sealing cycle starts as following:
  • Closing of rear jaw.
  • Sealing cycle starts.
  • The cooling cycle starts.
  • After cooling cycle is over, the rear jaw opens.

Technical Specification

Sealing Length	200 mm (maximum upto 2 mtrs on demand)
Output	150 to 600 per hour (depending upon the pouch structure)
Power	220 Volts, AC, Single Phase, 1 KW (or depending upon the length of the heating element)
Machine size	750 mm x 375 mm x 1125 mm
Compressed Air	6 CFM/hour at 6 kg/cm²
Chilled Water	Consumption = 50 litres per hour at 10-15°C in closed circuit
Coding System	Coding by hot embossing on pouches. To mark price, month and year of filling or any other variable information.
Sealing/Capping System (Optional)	Impulse sealing followed by chilled water cooling or capping system on pet bottles
Dimensions	110 X 110 X 150 cms
