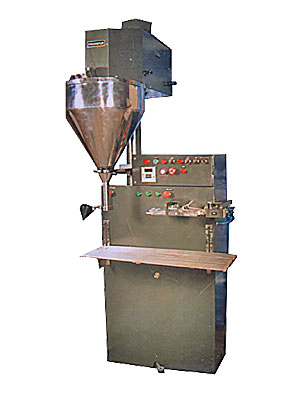

Semi-Automatic Auger Filler with Sealing System for powders (SPAF)

To fill powder products into pouches, bags, jars, bottles, etc. ranging between 1 kg to 10 kg.

Applications

Any products like: wheat flour, white flour, white cement, free flowing salt etc.

Advantages

• Accuracy as per Weights & Measures Act.
• Pneumatically operated impulse sealer.
• Minimal maintenance costs.
• Coding with hot embossing.

Special Features

• System to make sealing joints as THERMO-WELD with circulation of chilled water.
• Adjustable tray to suit pouch height.
• All material contact points are made of best quality SS Material.

Technical Specification

Capacity	50 to 1000 ml
Production rate	About 350 to 1000 pouches per hour depending on volume and nature of the product to be filled
Maximum Sealing Length	200 mm
Electricity	110 V/220 V, Single Phase, 50 Hz, AC, 1 KW
Compressed Air	10 m³/Hour at 6 kg/cm²
Chilled Water	Consumption = 50 litres per hour at 10-15°C in closed circuit
Coding System	Coding by hot embossing on POUCHES. To mark price, month and year of filling or any other variable information.
Sealing/Capping System	Impulse sealing followed by chilled water cooling or capping system on pet jars
Dimensions	110 X 110 X 150 cms
