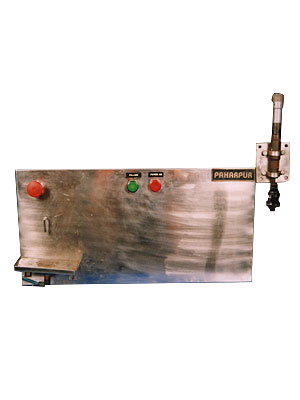

Filling machine for Liquids (SPLP)

Standipack provides a highly compact and accurate machine for the filling of free flowing liquid products in small quantities. This model is compact and requires minimal service.

Purpose

To fill small quantities between 5 ml to 60 ml with high accuracy.

Applications

• Viscous products.
• Laboratory filling.

General Features

• A volumetric filling device.
• Plastic capping system.
• A height-adjustable bottle support chute.

Standard Features

• Positive volumetric filling control.
• Filling range 5 to 60 ml.
• High fill accuracy.
• Plastic capping system, if needed, can be attached to machine.
• Modular type electronic controls for easy replacements.

Design

SPLP machines are built to withstand difficult operating conditions. The complete machine is made of high quality stainless steel EN-304, is a compact table-top model. SPLP machine needs minimum servicing.

Filling of Viscous Products:

The machine is fitted with volumetric dosing pump. The dosing pump is fitted with a rotary valve system and an anti-dripping filling nozzle. The volume to be filled is adjusted by changing the pump stroke.

Technical Specification

Capacity	5 to 60 ml
Production rate	600 to 900 bottles per hour
Power Supply	220 V/110 V ±5% 250 Watt Single Phase AC 50 Hz
Compressed Air	5 cu. m. per hour @6 kg/cm² working pressure.
Capping System (Optional)	Can provide plastic capping system on bottles as per cap size given
Dimensions	635 mm x 255 mm x 355 mm
